Regad FN Series Creaser Tips (All Sizes)

Regad FN Series

The FN series edge creasers are similar to the F series, as they both have two edges. One that guides along the edge of the leather and the other that creases on the top of the leather with a 1.0mm softer crease thickness. The main difference between the F and FN series is that the FN creasers have a rounded crease and a wider and softer (1.0mm total) crease mark. It also has a beveled face.

Specs:

• Length of Head only: 17.85 mm
• Length of Full Tool: 64.45 mm
• Width: 22.85 mm
• Thickness: 4 mm - 5 mm
• Weight: 0.8 oz.

Size Options:

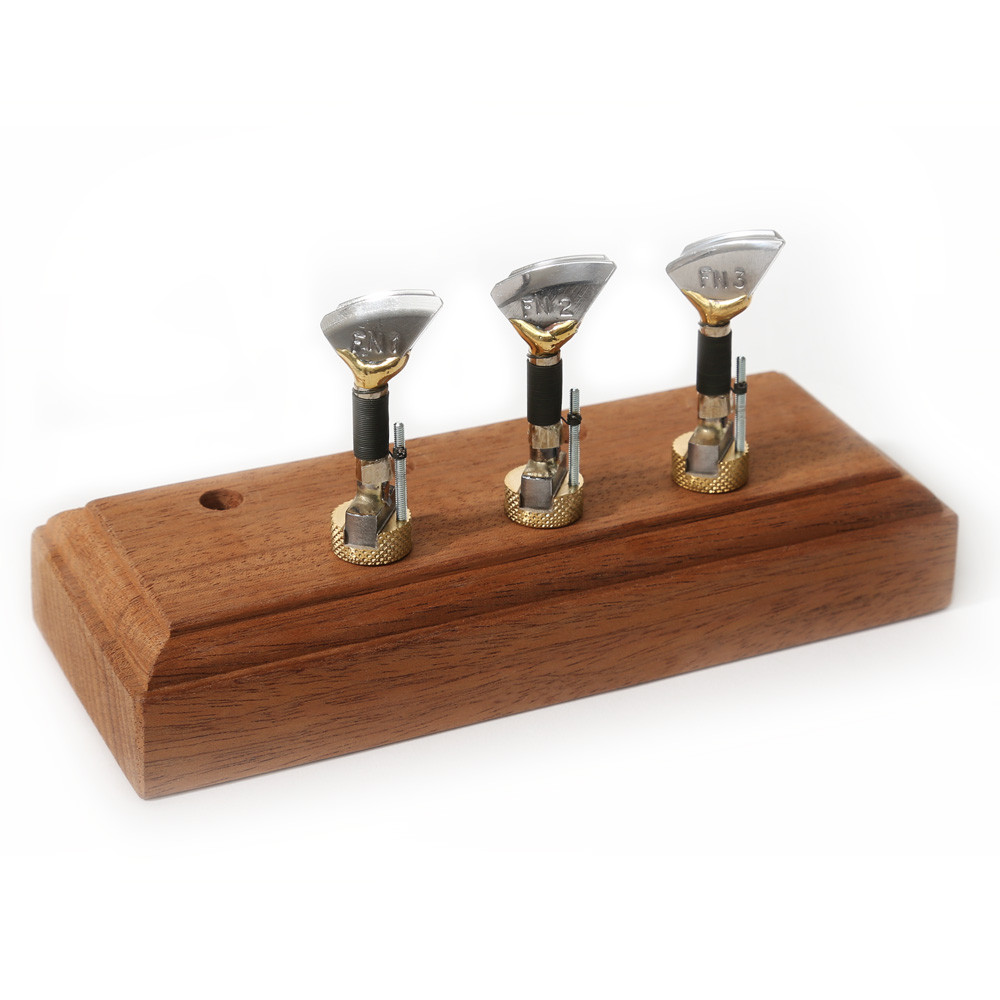

• FN1M: 0.75mm width of groove– 1.0mm crease thickness
• FN2M: 1.0mm width of groove– 1.0mm crease thickness
• FN3M: 1.25mm crease distance from leather – 1.0mm crease thickness

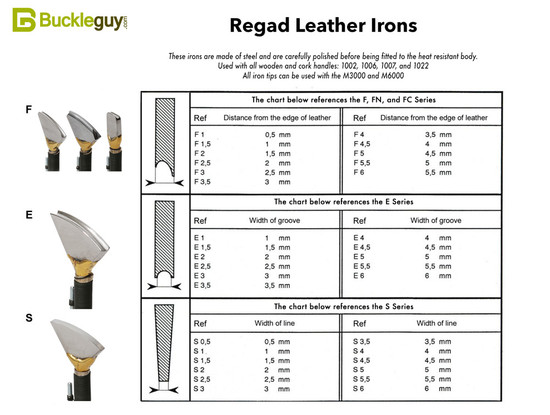

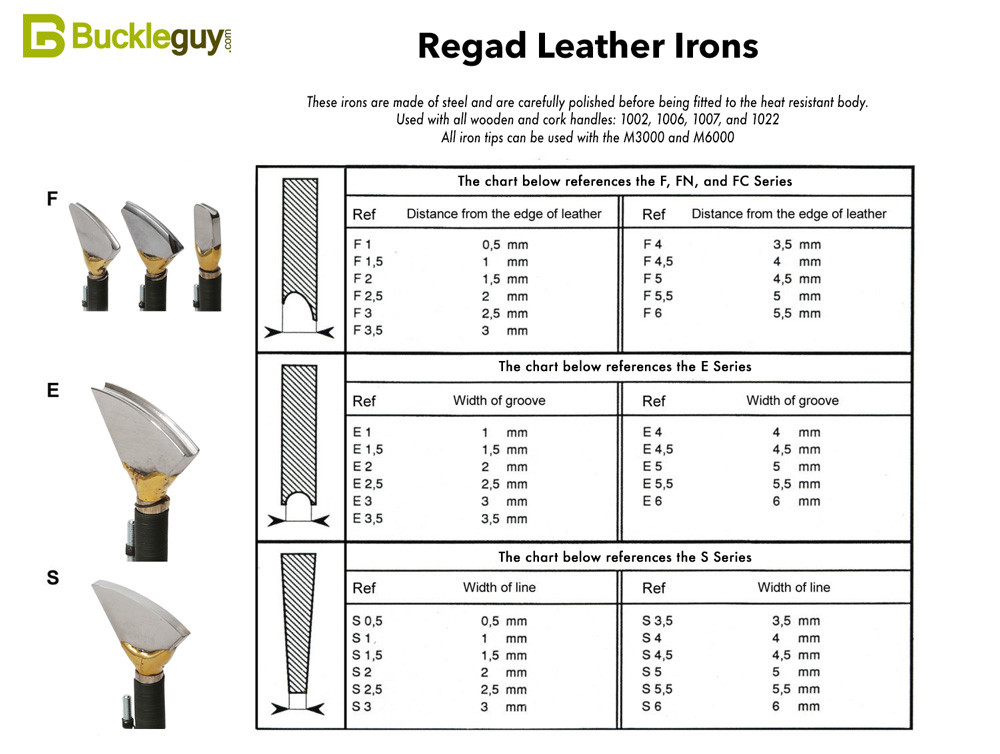

Difference between F, FC, FN, FNMCR:

• F: Standard crease, 0.5mm pointed crease mark
• FC: Similar to F, but with smaller head for tight curves, 0.5mm pointed crease mark
• FN: Rounded and gradual curve, 1.0mm softer crease mark
• FNMCR: Similar to FN, but with a circular head for round and tight corners, 1.0mm softer crease mark

Used with any of the Regad Controllers and Handles:

• Electronic Controller:
• M3000 - Single Handle Connection
• M6000 - Dual Handle Connection
• Handles:
• 1002 – Thick Cork Handle
• 1022 – Thin Cork Handle
• 1006 – Straight Wood Handle
• 1007 – Curved Wood Handle

Material: Stainless Steel

About Ets P. Regad & Fils

Founded in 1936 in France, The Regad Company specializes in the design and production of electrical tools for the finishing of fine leather goods. Their tools are among the most premiere in the market when it comes to leather working. All tools have been put through meticulous tests and have become staples in leather workshops around the world. Regad makes electrical tools for finishing edges, cutting thread and zipper, adding grooves, making patterns, and more. On Buckleguy we stock nearly the entire catalog of Regad products including all controller boxes, irons, and accessories.
