Magnetic Snap, Riveted Backs, Nickel Plate

SKU:

MAG-RDRV-NP
Weight:
0.010 LBS
$1.49 - $1.72

Bulk Ordering Chart

  • Quantity Discount Unit Price
  • 1 - 10 0% off -
  • 10 - 99 15% off -
  • 100 - 499 25% off -
  • 500 - 999 35% off -
  • 1000 + 40% off -

Free Shipping on orders over $100

Some Restrictions

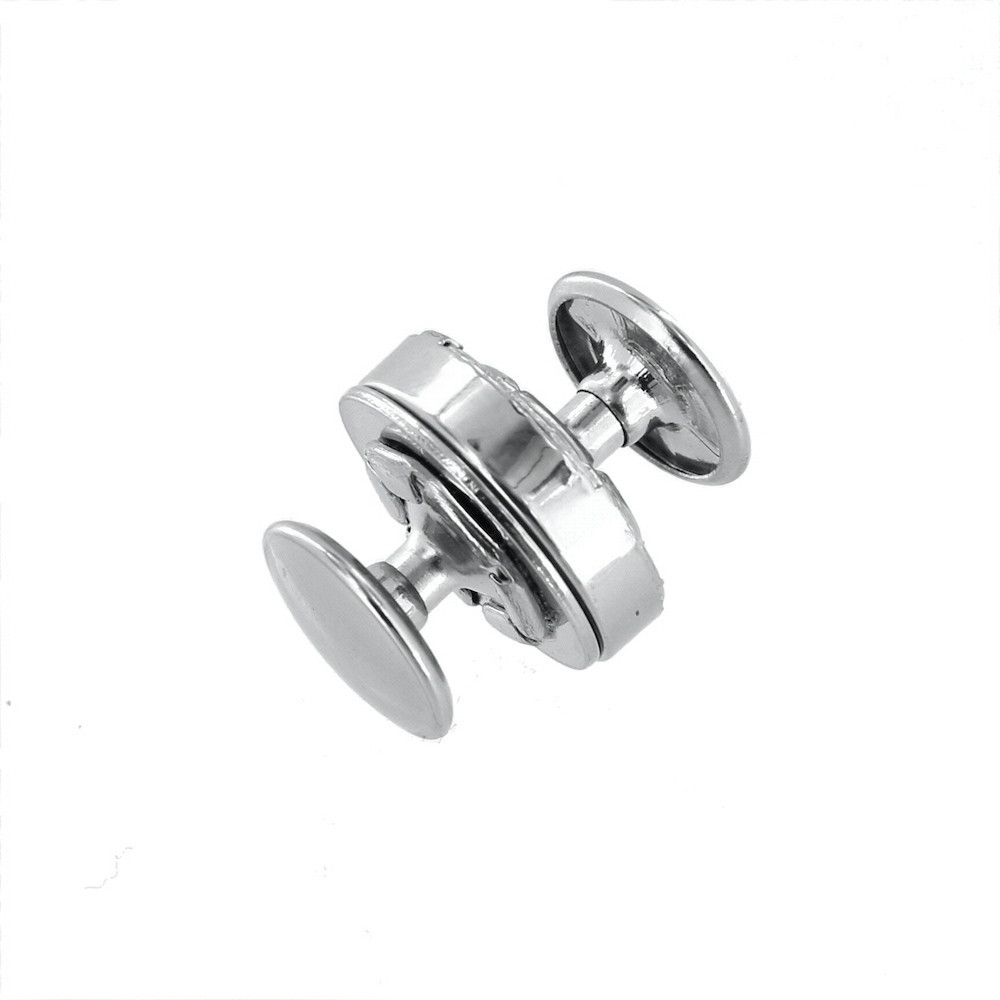

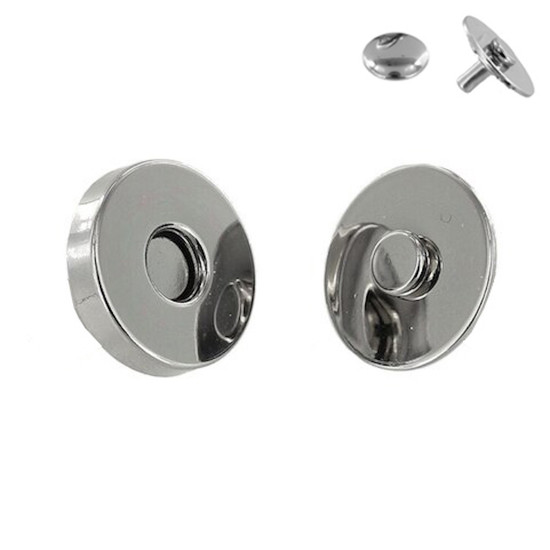

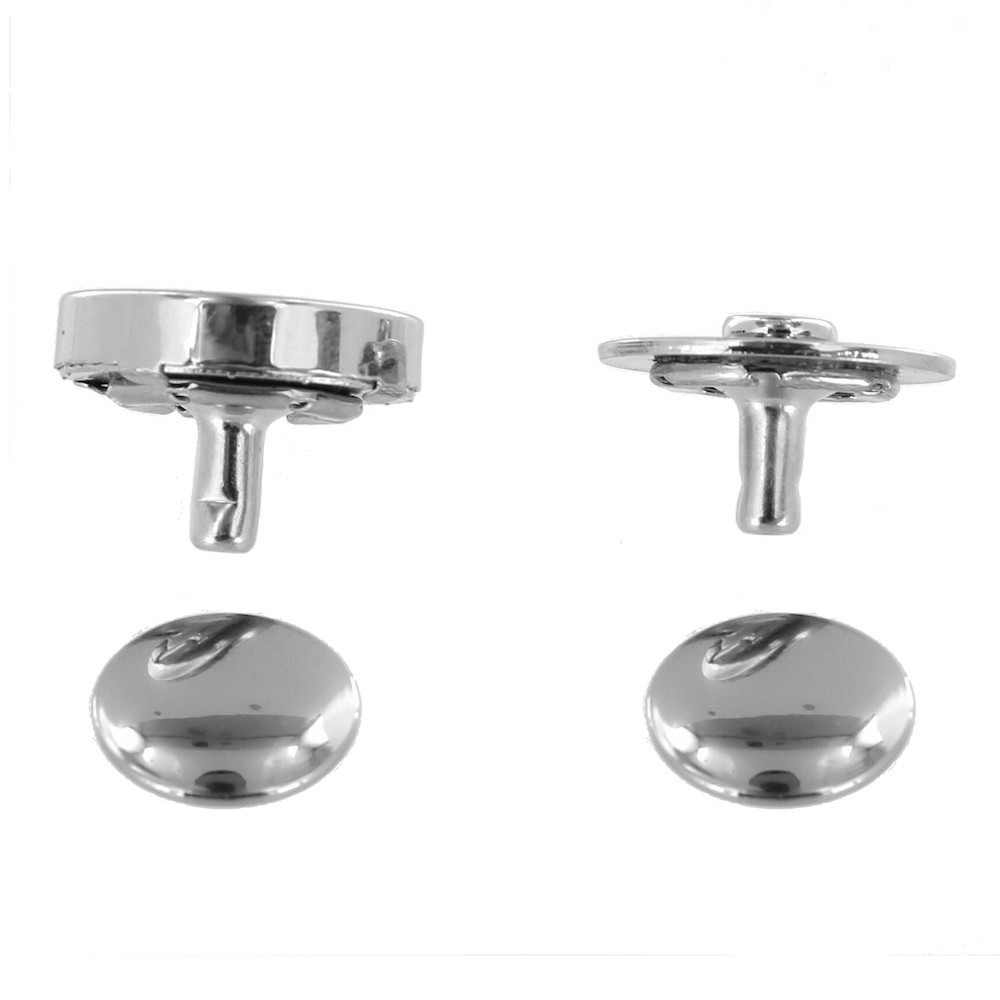

BG Round Magnetic Snaps w/ Riveted Backs

Style #: MAG-RDRV

Finish: Nickel Plate

Setting Tools:

Suggested Hole Punch:

  • We suggest an 1/8" hole punch. We recommend a rotary punch as you have 6 punch sizes in one tool. And different rivet sizes require different holes sizes, so a rotary punch is quite versatile.

Material Thickness: Post length works with materials up to 3.6mm (9oz)

Sizes:

  • 10mm / .423 inches (magnet diameter)
    • Socket/Receiving Magnet Thickness: 2.2mm / 0.09 in.
    • Rivet Cap Diameter: 9.3mm / .365 in.
    • Post Diameter: 2.8mm / 0.11 in.
    • Post Length: 7.0mm / 0.27 in
  • 12mm / .506 inches (magnet diameter)
    • Socket/Receiving Magnet Thickness: 2.5mm / 0.1 in.
    • Rivet Cap Diameter: 13.3mm / .527 in.
    • Post Diameter: 2.9mm / 0.11 in.
    • Post Length: 7mm / 0.27 in
  • 14mm / .551 inches (magnet diameter)
    • Socket/Receiving Magnet Thickness: 2.2mm / 0.09 in.
    • Rivet Cap Diameter: 13.3mm / .525 in.
    • Post Diameter: 2.8mm / 0.11 in.
    • Post Length: 6.9mm / 0.27 in
  • 18mm Thin / .709 inches (magnet diameter)
    • Socket/Receiving Magnet Thickness: 2.2mm / 0.09 in.
    • Rivet Cap Diameter: 13.3mm / .525 in.
    • Post Diameter: 3.3mm / 0.13 in.
    • Post Length: 6.6mm / 0.26 in
  • 18mm Thick / .709 inches (magnet diameter)
    • Socket/Receiving Magnet Thickness: 4.2mm / 0.17 in.
    • Rivet Cap Diameter: 13.3mm / .525 in.
    • Post Diameter: 3.3mm / 0.13 in.
    • Post Length: 6.6mm / 0.26 in

 Strength:

  • 10mm (4.4 lbs / 2.0kg)
  • 12mm (4.4 lbs / 2.0kg)
  • 14mm (5.5 lbs / 2.5kg)
  • 18mm
    • THICK (4.4 lbs / 2.0kg)
    • THIN  (6.6 lbs / 3.0kg)

Gauss: Unit of measurement of magnetic flux density

  • 10mm : 900
  • 12mm : 1000
  • 14mm : 1200
  • 18mm
    • THICK : 800
    • THIN : 1300

Magnet Type: N38 Rare Earth Magnet (Neodymium)
