Leather Capped Rivet Setter Die ***Requires hand tool post & base or BG hand press***

SKU:

TLRHP-LEA
Weight:
0.026 LBS
$31.97

Free Shipping on orders over $100

Some Restrictions

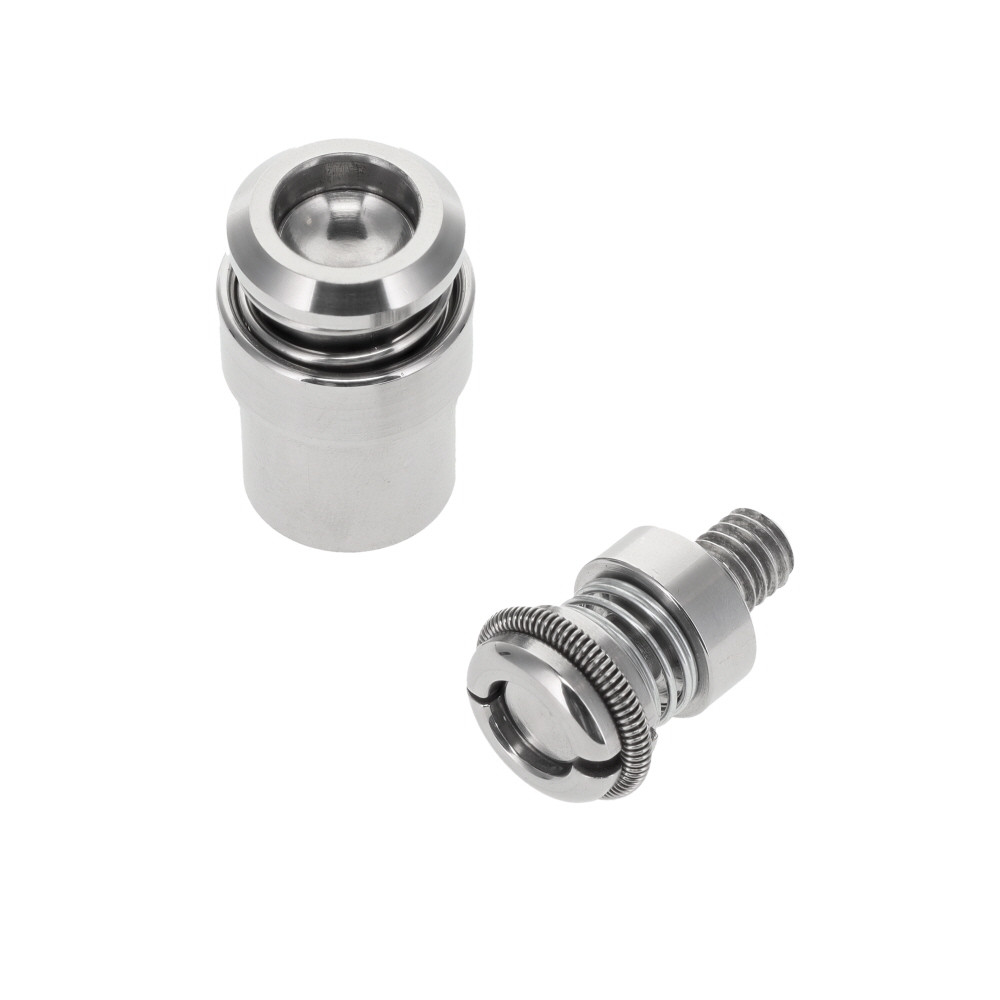

BG Rivet Setter Die for Double Cap Rivets with Leather Wrap

Used to set Leather Capped Rivets

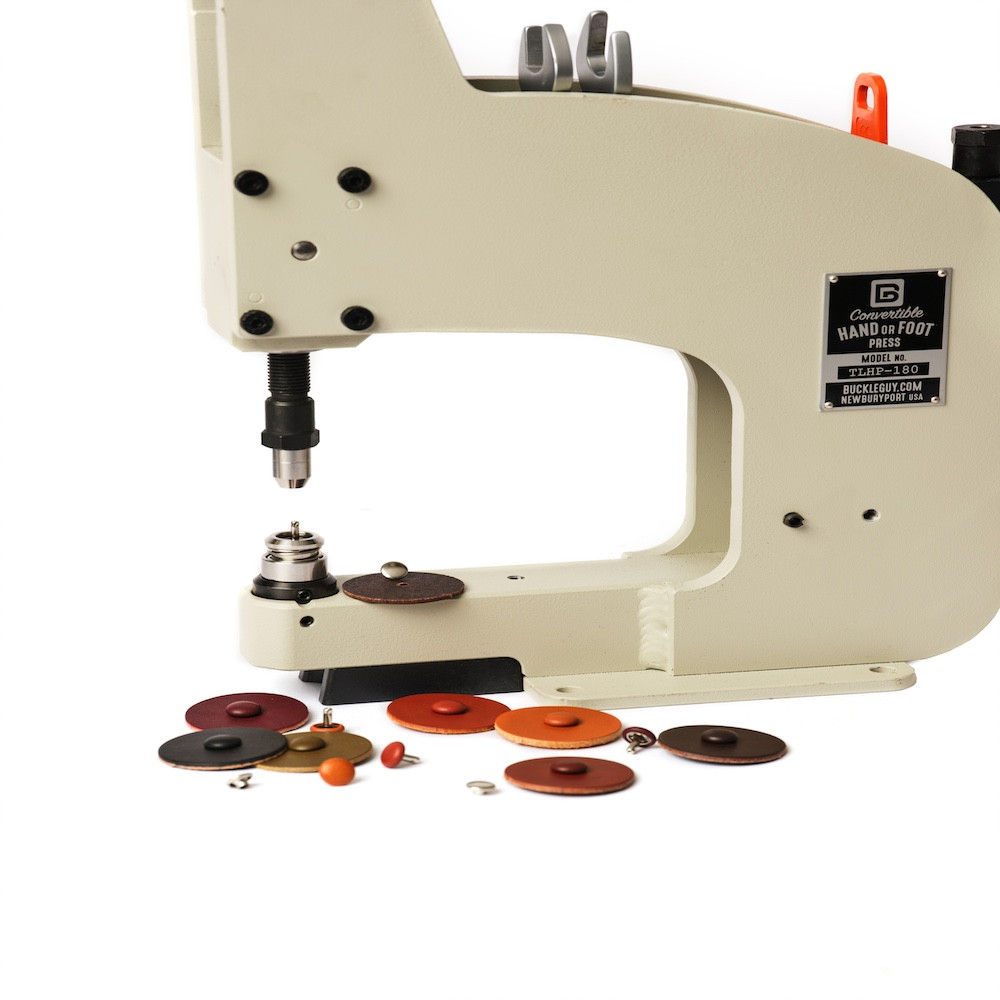

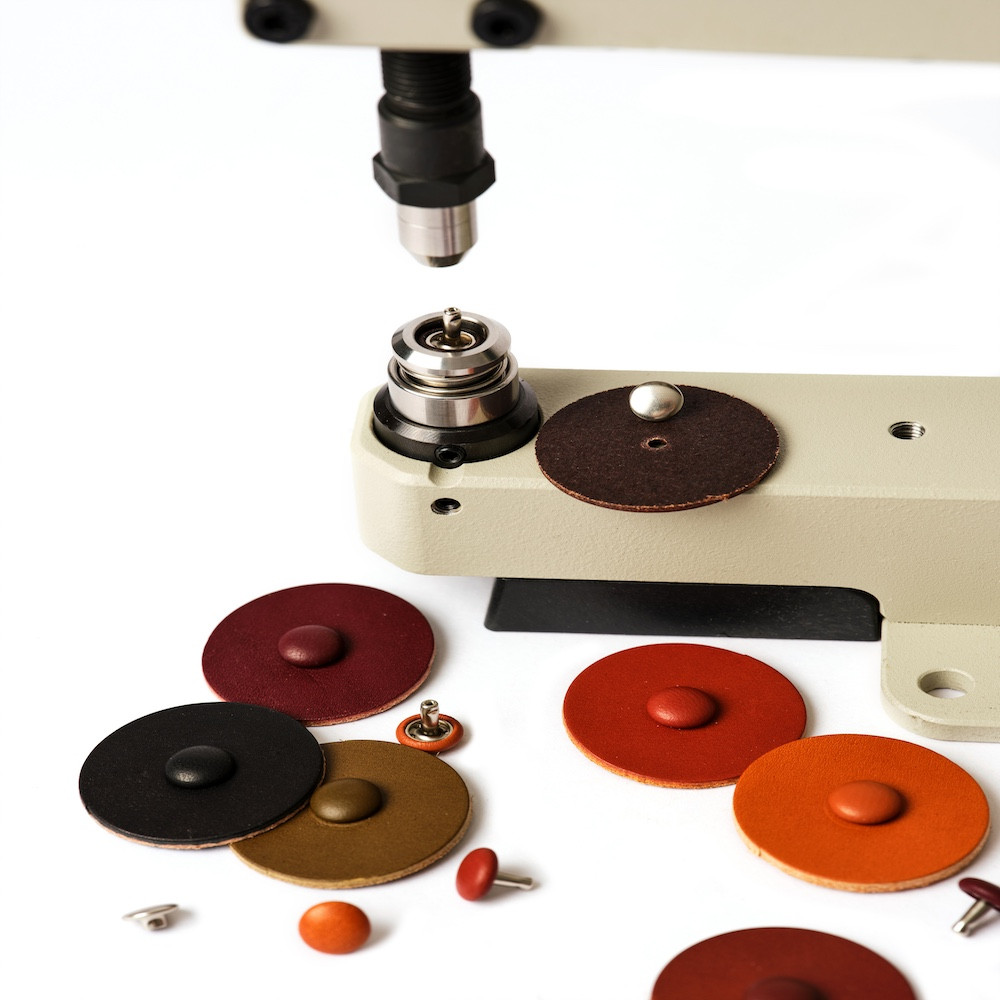

Requires hand tool post & base or BG hand press sold separately:

Die Size Specifications (Attachment Type). Image chart also above:

  • BG Standard (Fits BG tools and machines)
    • Diameter of upper die (threaded): 7.9mm (1.411mm thread pitch)
    • Diameter of bottom die (not threaded): 18.9mm

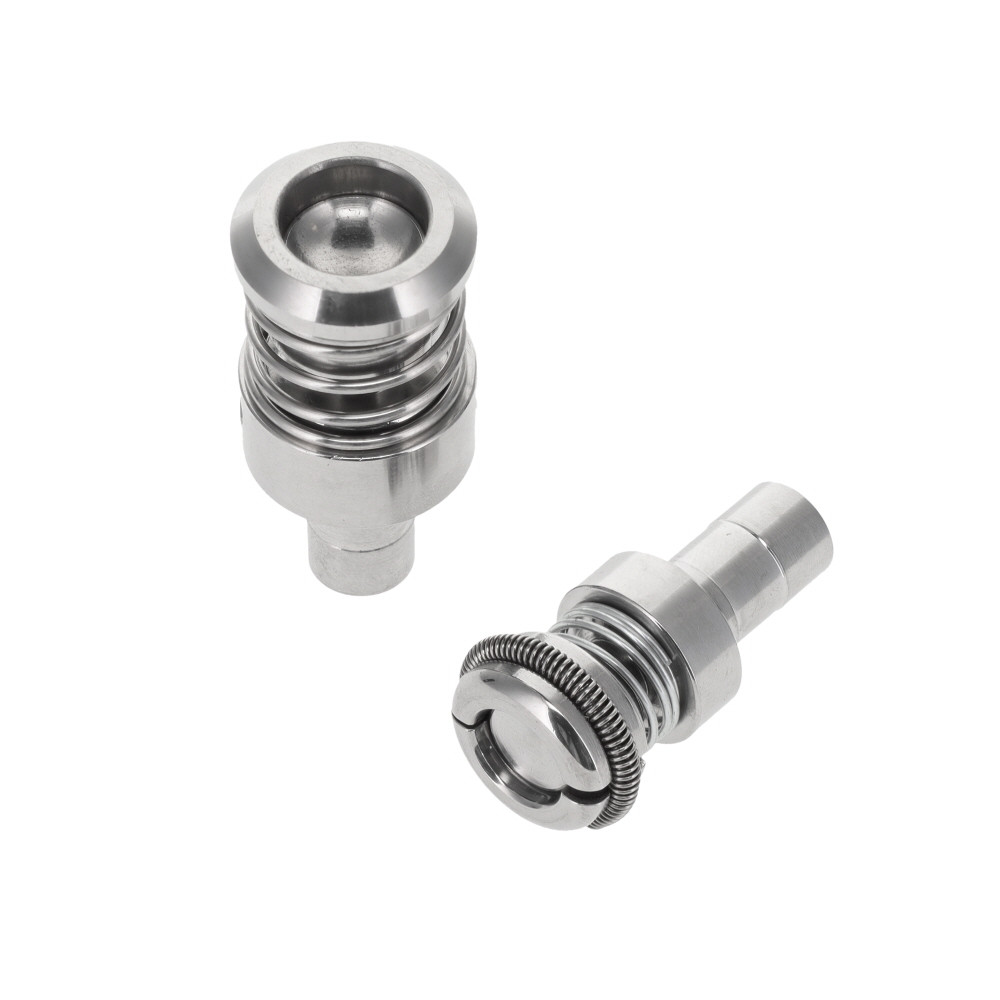

  • West Coast (Does not fit BG tools. But is used on most non-BG tools)
    • Diameter of upper die (not threaded): 9.5mm
    • Diameter of bottom die (not threaded): 9.5mm

Suggested Hole Punch:

  • We suggest a 1/8" hole punch
    • We recommend a rotary punch as you have 6 punch sizes in one tool. And different rivet sizes require different holes sizes, so a rotary punch is quite versatile.
    • For single size hole punch see below:

Material: Stainless Steel
