Biothane, Granite, Leather Weight

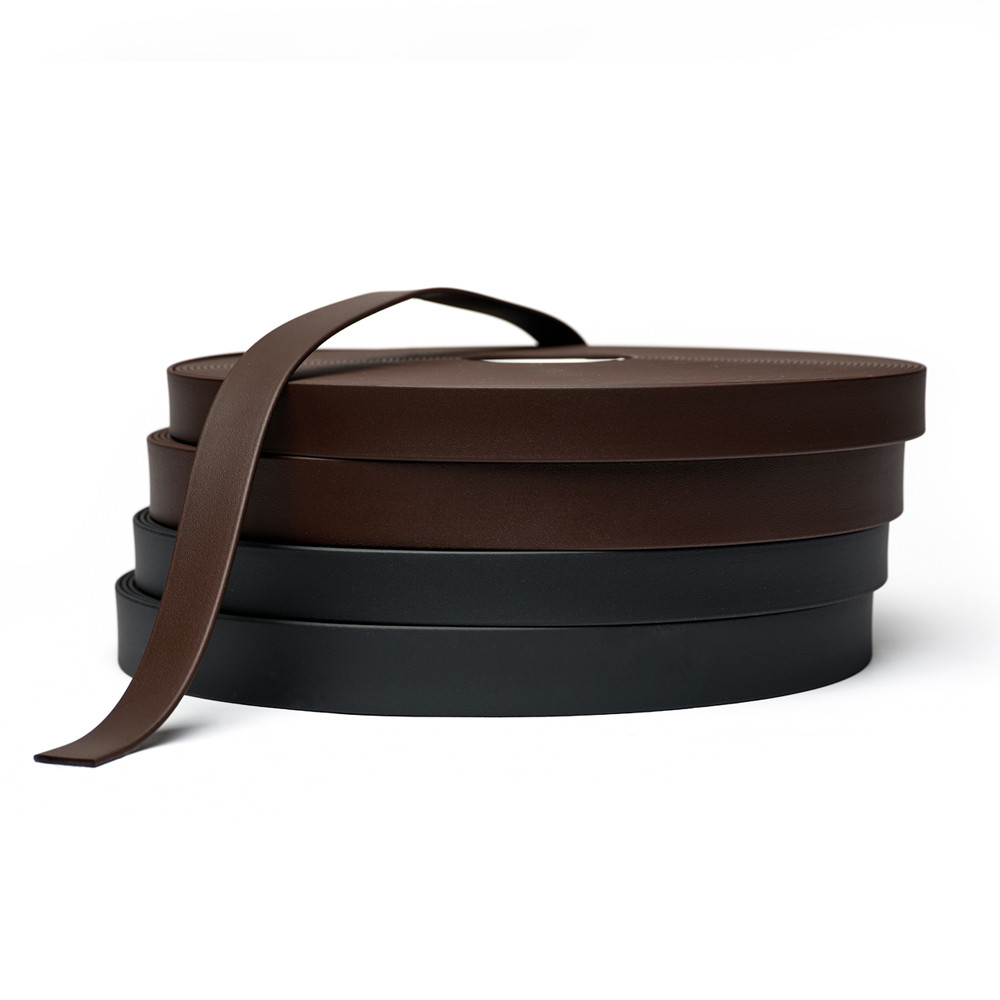

The BioThane® Granite 230 & 280 leather weight products are TPU coated polyester webbings with a matte (230) and semi-gloss (280) surface finish. One side of the webbing has a leather embossed grain surface while the other side has a sand embossed grain. The feel is more stiff and rigid when compared to the Beta product line. BioThane webbing is waterproof, durable, UV resistant, weldable, and easy to clean. A great leather alternative for waist belts, pet products, dog collars, leashes, leads, rifle slings, safety strapping, equine saddlery tack, and more.

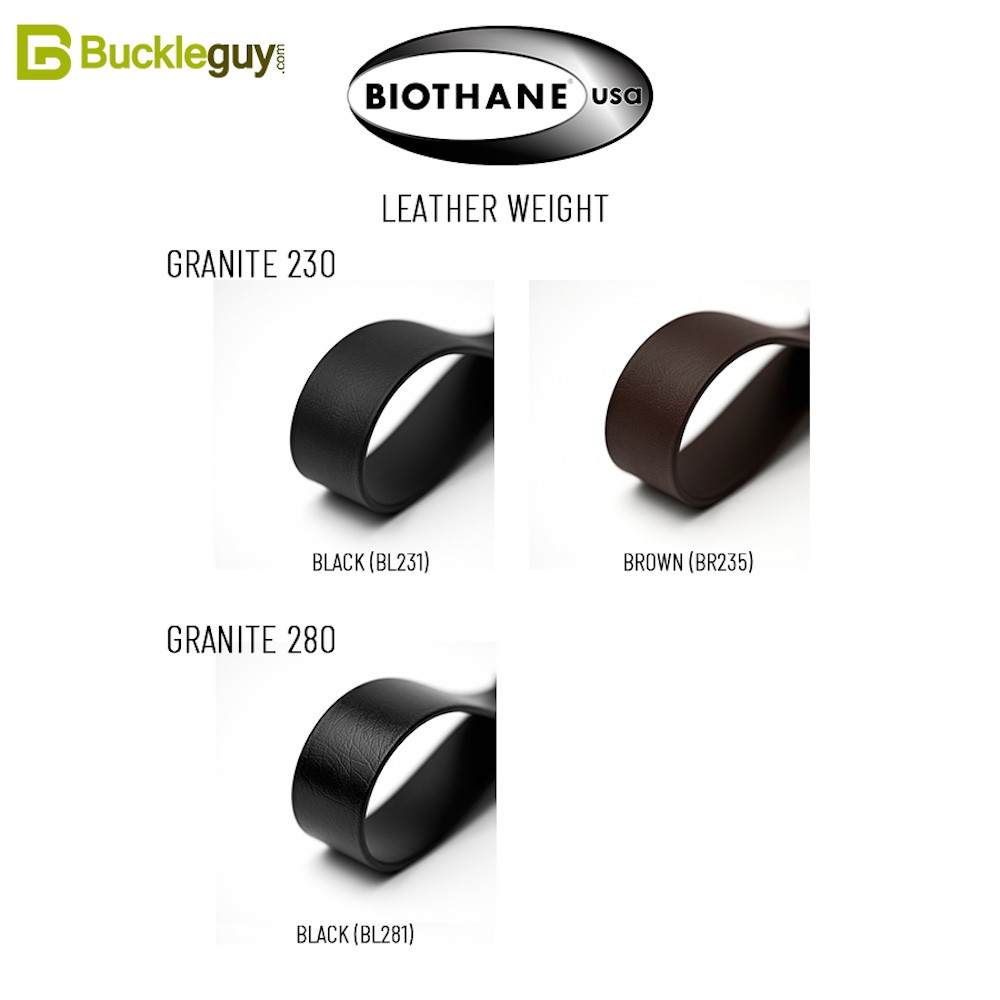

Type: Granite Leather Weight

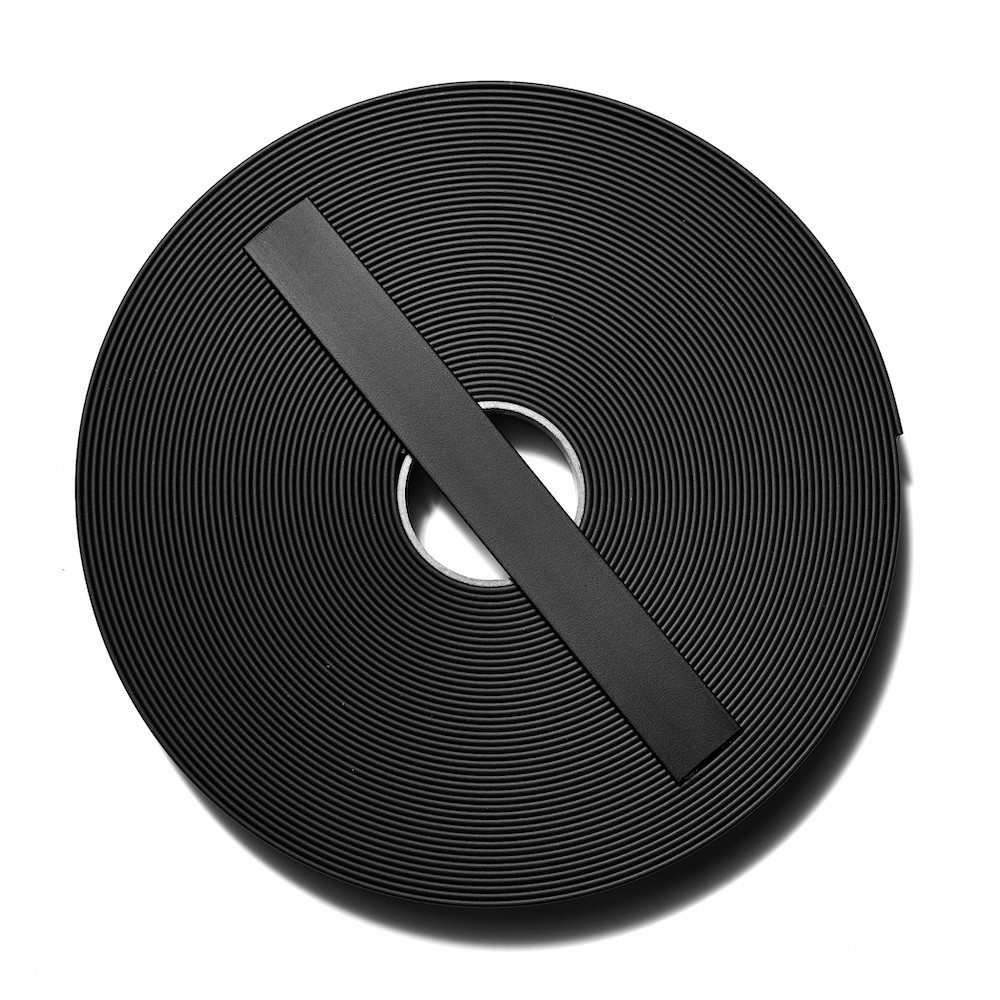

  • Granite 230 = matte surface finish
  • Granite 280 = semi-gloss surface finish

Granite 230/280 Leather Weight Specs:

  • Thickness: Leather Weight = 3.0mm - 0.12" inch - (7.5oz)
  • Surface Finish: One side is embossed with a leather grain texture, and the other side is embossed with a sand grain texture.
    • 230: Matte finish
    • 280: Semi-Gloss finish
  • Material: Polyester webbing interior with TPU exterior coating.
  • Temper (Stiffness): Medium - Slightly rigid and moderately pliable
  • Tape Color: Black & Brown
  • Webbing Widths: 1-1/4", 1-1/2"
  • Break Strength: 1,000 lbs per square inch (453 kgs)

Lengths:

  • By the foot - continuous length
    • For example, if you order a quantity of 9, you will get 9 continuous feet.
    • There are up to 2 splices in a roll of 100 feet. Therefore, we only guarantee continuous lengths of up to 10 feet, meaning if you order a quantity of 17 of the 1-foot (continuous length), it is possible you will receive a 10 foot length and a 7 foot length.
  • 25 Foot Roll
  • 100 Foot Roll
    • In a 100' roll BioThane does not guarantee 100 continuous feet. There may be up to 2 splices (3 pieces) in a roll of 100. But no piece will be shorter than 10 feet.

BioThane Beta vs Granite:

There are two primary differences between Beta & Granite:

  1. Coating Material: Beta has a PVC coating and Granite uses a TPU coating.
  2. Temper (Stiffness): Beta is softer and more flexible while Granite is slightly more rigid and stiff.

FAQ:

  • Can you sew through BioThane?
    • Absolutely! For sewing tips and how to's please click here.
  • Can you use rivets on BioThane?
    • Yes. Punching holes or using self-piercing tubular rivets is great on BioThane products.
  • Can you heat and seal BioThane?
    • Yes, cutting and heating BioThane is possible. When you cut the webbing it is not necessary to seal the ends. The polyester webbing will not absorb the water. However, for aesthetic reasons or applications where welding the product is required you certainly can. Please click the following links for the safety guidelines for heating BioThane products as it is toxic and your area should be well ventilated. Safety sheet for PVC products. Safety sheet for TPU products.
  • Can you paint BioThane edges?
  • How do you clean BioThane?
    • Warm water and soap will work well. You also can dab the BioThane with a small amount of rubbing alcohol.

Due to distributor requirements Buckleguy.com cannot ship BioThane products to: United Kingdom, Germany, Spain, India, Australia

Made in Ohio, USA
